CUBISCAN 75

Overhead Parcel Dimensioning System



With the new DIM-weight shipping regulations, the new CubiScan 75 is a vital tool to quickly and accurately measure and weigh parcels to minimize daily shipping costs.

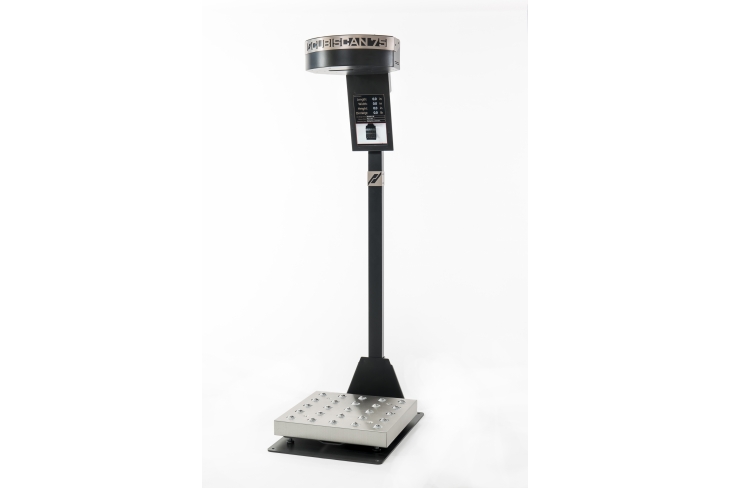

Cubiscan75-176
Summary
Specifications

The revolutionary CubiScan 75 is an advanced overhead dimensioning device designed to quickly and accurately measure parcels in low to high volume shipping applications. The cost-effective CubiScan 75 utilizes powerful 3-D cameras to create a flexible and economical dimensioning solution for today’s most demanding shipping environments.



This new parcel scanning system has no moving parts, making the device user-installable and easily maintained. The simple overhead design of the 75 allows packages to be placed from almost any direction. The CubiScan 75 can seamlessly integrate with shipping software, a barcode scanner, and label printer; to create a complete shipping/manifesting workstation, helping to avoid errors and costly chargebacks.



The CubiScan 75 is capable of measuring an object in a matter of seconds with a measurement capacity of up to 40” long, 28” wide, and 24” high. It has an impressive resolution of 0.2 inches, plus an integrated 10” color display, showing the measurement results for the user. CubiScan’s proprietary software interface, Qbit™, will pass accurate parcel dimensions to almost any shipping system.

Physical Specifications


Length:

29 in (74 cm)



Width:

18 in (46 cm)



Height:

58 in (148 cm)



Weight:

73 Ib (33 kg)

Other



Operating Speed:

0.5 - 2 seconds



Dimensional Increment:

0.2 in (0.5 cm)



Measuring Sensor:

3D Camera



Data Output:

Serial(1), Ethernet(1)



Power Requirements:

100-240 VAC, 50-60 Hz



Operating Temperature:

14° - 104°F (-10° - 40°C)



Humidity:

5% - 95% Non-condensing
