CUBISCAN 25

After the release of CubiScan 125, Quantronix, a leading automatic measurement system company in the entire globe, is going to release CubiScan 25 which is an automatic measurement device. It is one of the most advanced measurement systems because it accurately measures the length, width, height, weight and volume or irregular size and shape items. Then it directly input the data to computer systems so it replaces the manual data input and ensures the accuracy and completeness of the data.

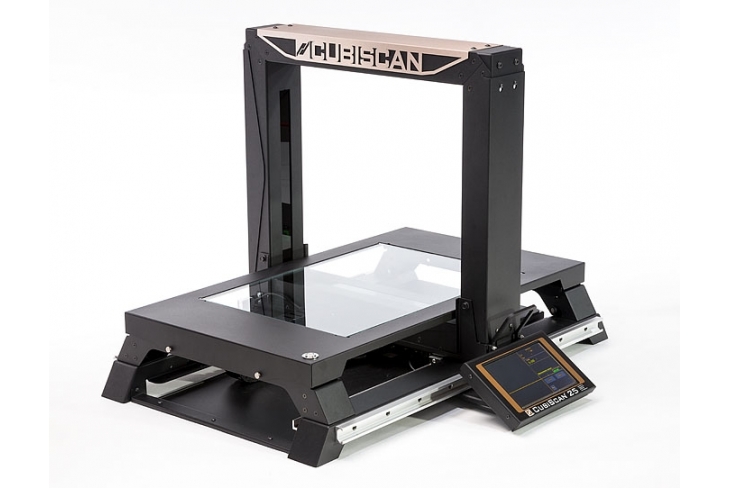

Cubiscan25-105sm
Summary
Specifications

Features



  • Designed for measuring small parts, irregular shapes, and box-type items
  • Designed to work with warehouse management system software
  • Optimize storage space, picking process, carton selection and freight calculation
  • Compatible with Package/Load Optimization Software Suite
  • Remove the hassle of manually entering data and protect data integrity
  • Provides useful data for optimization of cargo positioning

Physical Specifications



Length:

32 in (81 cm)



Width:

27 in (69 cm)



Height:

23 in (58 cm)



Weight:

62 Ib (28 kg)



Measurement Range



Length Capacity:

0.1 - 18 in (0.2 - 45 cm)



Width Capacity:

0.1 - 12 in (0.2 - 30 cm)



Height Capacity:

0.1 - 12 in (0.2 - 30 cm)



Weight Capacity:

0.005 - 15 Ibs (0.002 - 6 kg)



Operating Speed:

< 5 seconds



Dimensional Increment:

0.05 in (0.1 cm)



Weight Increment:

0.005 Ibs (0.002 kg)



Object Characteristics:

Opaque

Other



Measure Sensor:

Infrared Light Beam



Weight Sensor:

Four load cells



Data Output:

Serial(1), Ethernet(1), USB(1)



Power Requirements:

100 - 240 VAC, 50 - 60 Hz



Operating Temperature:

32° - 104 °F (0° - 40 °C)



Humidity:

0% - 90% Non-condensing
